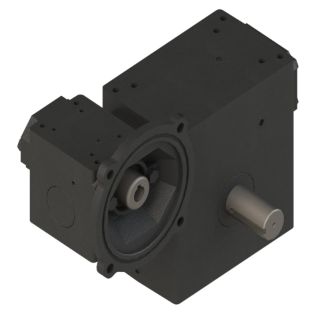

Actual Product May Vary From Image

2604 900/1 WR 56C DOUBLE OUTPUT HUB

Name: 2604 900/1 WR 56C DOUBLE OUTPUT HUB
SKU: 2604 900/1 WR 56C DOUBLE OUTPUT HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-24292 2600 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 0.185 hp Input, 900:1 Gear, 1.94 rpm Maximum Output, 2485 in-lb Output Torque Rating

Manufacturer part number: 0230-24292

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2600, 900:1 Gear Ratio, 0.185 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1-1/4 in Dia Output, 1.94 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2485 in-lb Output Torque, 2.63 in Centre Distance, 1/4 x 1/8 in Output Keyway, 41.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 9 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Double output

Specifications

Centre Distance:	2.63 in
Dimensions:	9 in W
Efficiency:	41.5 %
Gear Ratio:	900:1
Horsepower:	0.185 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	1.94 rpm
Output Size:	1-1/4 in Dia
Output Type:	Shaft
Series:	2600
Torque Rating:	2485 in-lb Output
