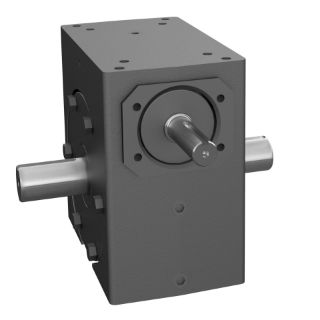

Actual Product May Vary From Image

261 100/1 A WR HUB

Name: 261 100/1 A WR HUB
SKU: 261 100/1 A WR HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-06962 260PCX Right Angle Single Reduction Style A Worm Gear Reducer, Shaft Input, Shaft Output, 0.45 hp Input, 100:1 Gear, 17.5 rpm Maximum Output, 945 in-lb Output Torque Rating

Manufacturer part number: 0230-06962

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 260PCX, 100:1 Gear Ratio, 0.45 hp Input, Shaft Input, Shaft Output, 0.75 in Dia x 2.38 in L Input, 1-1/4 in Dia x 2-1/4 in L Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 945 in-lb Output, 2.63 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 58.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 9 in W x 7.438 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Dimensions:	9 in W x 7.438 in H
Efficiency:	58.7 %
Gear Ratio:	100:1
Horsepower:	0.45 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.75 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	1-1/4 in Dia x 2-1/4 in L
Output Type:	Shaft
Series:	260PCX
Torque Rating:	945 in-lb Output
