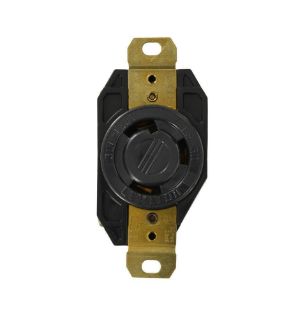

Actual Product May Vary From Image

2610-B LEV

Name: 2610-B LEV
Brand: Leviton Manufacturing
SKU: 2610-B LEV
Availability: OutOfStock

Leviton® V-0-Max™ 2610-B Grounding Locking Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 2610-B

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Grounding

Description

Leviton® V-0-Max™ Locking Receptacle, Grounding, 125 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L5-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Application

Commercial Applications

Standards

Features

Full rated current limiting
Ratings and NEMA ID permanently marked on device for identification
1-piece brass contact provides longer life and continuous conductivity vs. multi-piece riveted styles
Amperage, voltage, NEMA configuration and manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
Terminal identification molded into the body lasts longer than stamping
Color coded voltage ID ring on face for quick visual identification
Box mounting
14 to 8 AWG terminal accommodation
Flush mount

Specifications

Amperage Rating:	30 A
Color:	Black
Country of Origin:	US
Dimensions:	3.63 in H x 1.69 in W x 1.31 in D
Grade:	Industrial
Horsepower:	2 hp
Material:	Polybutylene Terephthalate
NEMA Rating:	NEMA L5-30R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
