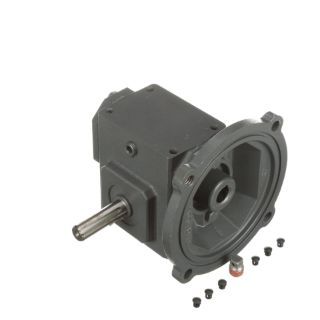

Picture of 262Q56L15 MOR
Actual Product May Vary From Image

262Q56L15 MOR

Morse® Raider® Plus XG1124 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Left Output, 1 hp, 15:1 Gear Ratio, 116.6 rpm Maximum Output, 130.16 in-lb Input/116.6 in-lb Output Torque Rating
Manufacturer: Regal Rexnord
Manufacturer part number: XG1124
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,707.27

Product Details

Brand Name

Morse®

Type

Single Reduction Standard

Description

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 15:1 Gear Ratio, 1 hp, C-Face Quilled Input, Left Output, 0.63 in Dia Input, 1.13 in Dia x 2.73 in L Output, 116.6 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 130.16 in-lb Input/116.6 in-lb Output, 2.62 in Centre Distance, 0.1875 x 1.63 in Input Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 9.53 in L x 8.74 in W x 8 in H

Application

Food Industry, Lumber Industry, Paper Mills, Rubber Industry and Textile Industries

Standards

FDA Approved

Features

  • Rugged cast iron housing provides maximum strength and dependability
  • High lead angle worm is case hardened, ground and polished
  • Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
  • Tapered roller bearings are used on output shaft
  • Forged bronze worm gears provide optimum balance of strength and wear
  • Heavy duty tapered roller bearings on all output shafts
  • 56C motor frame size

Specifications

Centre Distance:2.62 in
Country of Origin:US
Dimensions:9.53 in L x 8.74 in W x 8 in H
Efficiency:80 %
Gear Ratio:15:1
Horsepower:1 hp
Input Maximum Speed:1750 rpm
Input Size:0.63 in Dia
Input Type:C-Face Quilled
Keyway Size:0.1875 x 1.63 in Input
Lubrication Type:Polyglycol Oil
Material:Cast Iron
Mounting Type:Direct/Floor
Output Maximum Speed:116.6 rpm
Output Size:1.13 in Dia x 2.73 in L
Output Type:Left
Torque Rating:130.16 in-lb Input/116.6 in-lb Output
