2648 WOO

Name: 2648 WOO
Brand: Molex/Woodhead
SKU: 2648 WOO
Price: 31.63 USD
Availability: OutOfStock

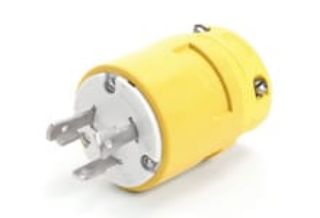

Woodhead® Super-Safeway® 2648 130141 Male Locking Plug With Locking Blade, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 2648

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$31.63

Qty:

Product Details

Brand Name

Woodhead®

Type

Male

Description

Woodhead® Super-Safeway products are heavy duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEo-TEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

Woodhead® Super-Safeway® Locking Plug, Male, Series: 130141, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, Industrial Grade, 0.335 to 0.64 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

Aircraft Construction/Airports, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Applications

Standards

UL Listed | CSA Certified

Features

NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway® offering
Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Two piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Nickel plated brass plug blades and connector contacts
NEoTEX® Paracril OZO rubber Super-Safeway® outer housing
Stainless steel face screw
Nylon face insert
Brass wire saddle clamp
zinc plated steel cord clamp screws
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	0.335 to 0.64 in
Country of Origin:	MX
Grade:	Industrial
Material:	Rubber
NEMA Rating:	NEMA L6-20
Number of Poles:	2
Number of Wires:	3
Series:	130141
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	250 VAC
