26A05R18 DOD

Name: 26A05R18 DOD
Brand: Dodge
SKU: 26A05R18 DOD
Price: 1,683.58 USD
Availability: OutOfStock

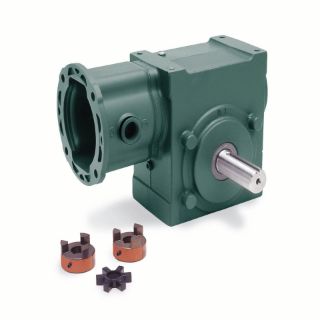

26A05R18 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 26A05R18

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,683.58

Qty:

Product Details

Base to Output Center Height:	2.8700
Base to Output Center Height (Unit):	INCH
Case Size:	26
Center Distance:	2.6300
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	5.6300
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	7.3700
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	6.9300
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	3-Piece Coupled
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 180TC Frame
Mounting Bolt Pattern Length:	6.3800
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	3.3800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	5.0000
Output Shaft:	Right (Solid B)
Output Shaft Center to Input Motor Mounting Face Distance:	9.5600
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Right
Overhung Load:	1330
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1247
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.1250
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	2.6700
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	8.7900
Thermal Horsepower Rating (Unit):	HORSEPOWER
