Actual Product May Vary From Image

26Q25H14 DOD

Name: 26Q25H14 DOD
Brand: Dodge
SKU: 26Q25H14 DOD
Price: 1,804.81 USD
Availability: OutOfStock

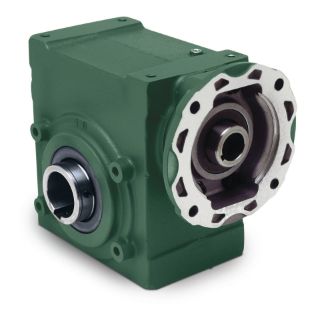

26Q25H14 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 26Q25H14

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,804.81

Qty:

Product Details

Base to Output Center Height:	2.8700
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.4380
Bore Diameter (Output) (Unit):	INCH
Bore Length:	6.6200
Bore Length (Unit):	INCH
Case Size:	26
Center Distance:	2.6300
Center Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	2.2600
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	1.8600
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:	6.3800
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	3.3800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	25.0000
Output Shaft:	Hollow
Output Shaft Center to Input Motor Mounting Face Distance:	5.4900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Hollow
Overhung Load:	1610
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1677
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Suitable For Washdown:	No
Thermal Horsepower Rating:	3.0000
Thermal Horsepower Rating (Unit):	HORSEPOWER
