26Q40L14 DOD

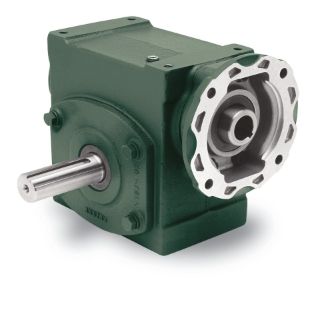

26Q40L14 TIGEAR-2 REDUCER
Manufacturer: Dodge
Manufacturer part number: 26Q40L14
Estimated dates are contingent upon manufacturer stock.
Please login to see accurate availability
$1,377.88

Product Details

Specifications

Base to Output Center Height:2.8700
Base to Output Center Height (Unit):INCH
Case Size:26
Center Distance:2.6300
Center Distance (Unit):INCH
Center to End of Shaft Distance:5.6300
Center to End of Shaft Distance (Unit):INCH
Gearbox Component Type:Gearbox
Horsepower Rating Input:1.5500
Horsepower Rating Input (Unit):HORSEPOWER
Horsepower Rating Output:1.1700
Horsepower Rating Output (Unit):HORSEPOWER
Housing Material:Cast Iron
Input Style:Quill
Lubrication:PAG, Standard Temperature
Motor Compatibility:NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:6.3800
Mounting Bolt Pattern Length (Unit):INCH
Mounting Bolt Pattern Width:3.3800
Mounting Bolt Pattern Width (Unit):INCH
Nominal Ratio:40.0000
Output Shaft:Left (Solid A)
Output Shaft Center to Input Motor Mounting Face Distance:5.4900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):INCH
Output Style:Left
Overhung Load:1610
Overhung Load (Unit):POUND_FORCE
Paint Type:Standard
Rated Torque Output:1685
Rated Torque Output (Unit):INCH_POUND
Seal Type:Single-Lip Contact
Shaft Diameter Output:1.1250
Shaft Diameter Output (Unit):INCH
Shaft Length Output:2.6700
Shaft Length Output (Unit):INCH
Suitable For Washdown:No
Thermal Horsepower Rating:2.1400
Thermal Horsepower Rating (Unit):HORSEPOWER
