Actual Product May Vary From Image

26W48 WOO

Name: 26W48 WOO
Brand: Molex/Woodhead
SKU: 26W48 WOO
Price: 52.79 USD
Availability: OutOfStock

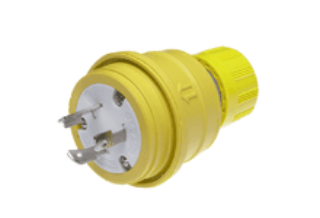

Woodhead® Watertite® 26W48 130147 Locking Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 26W48

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$52.79

Qty:

Product Details

Brand Name

Woodhead®

Description

Woodhead® Watertite® Locking Blade Plug, Series: 130147, 250 V, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, NEMA 1/3/4/4X/5/6/6P/12/IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow

Application

For wet location

Standards

CSA LR6837 | NSF/ANSI/3-A 14159-1 | UL E10176

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	NEMA 1/3/4/4X/5/6/6P/12/IP67
NEMA Rating:	NEMA L6-20
Number of Poles:	2
Number of Wires:	3
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 V
