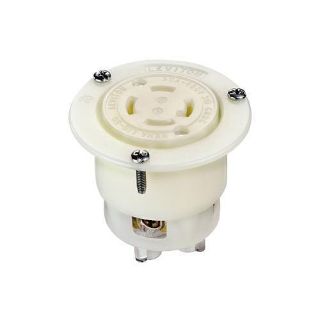

Picture of 2736 LEV
Actual Product May Vary From Image

2736 LEV

Leviton® 2736 3-Phase Grounding Receptacle Locking Flanged Outlet, 480 VAC, 30 A, 3 Poles, 4 Wires, White
Manufacturer: Leviton Manufacturing
Manufacturer part number: 2736
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$106.24

Product Details

Brand Name

Leviton®

Type

3-Phase Grounding Receptacle

Alternate Supplier #

Grainger - 25ME20

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Locking Flanged Outlet, 3-Phase Grounding Receptacle, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L16-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 33 in Dia Dimensions

Application

Commercial Applications

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13399/E13393 | UL94 V-2 Flammability Rating

Features

  • 14 to 8 AWG terminal accommodation, grounding
  • 2000 VAC minimum dielectric strength
  • Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
  • Nylon face material, solid brass line contacts
  • #10-32 brass terminal screws
  • #8-32 brass grounding screws
  • Thermoplastic nylon strap
  • Brass-hot, green ground, white-neutral terminal ID
  • Ratings are permanently marked on device product ID
  • Rugged nylon flange fits flush and won't crack in high abuse applications
  • Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
  • Wire clamps bundle stranded wire without cutting wire strands

Specifications

Amperage Rating:30 A
Color:White
Country of Origin:US
Dimensions:33 in Dia
Grade:Industrial
Horsepower:10 hp
Material:Nylon
NEMA Rating:NEMA L16-30R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:480 VAC
