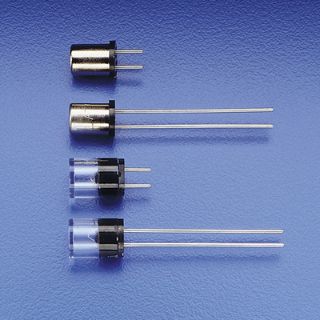

Actual Product May Vary From Image

274.005 LIT

Name: 274.005 LIT
Brand: Littelfuse
SKU: 274.005 LIT
Availability: OutOfStock

Littelfuse® MICRO™ 274.005 0274 Very Fast Acting Subminiature Fuse With Metal Cap, 0.005 A, 125 VAC/VDC, 10 kA Interrupt, Short Radial Lead Body

Manufacturer: Littelfuse

Manufacturer part number: 274.005

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Type

Very Fast Acting

Description

Developed originally for the US space program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug-in or radial lead styles and a complete range of ampere ratings from 0.002 to 5 A to suit a wide variety of design needs.

Littelfuse® MICRO™ Subminiature Fuse, Very Fast Acting, Series: 0274, Non-Indicating, 0.005 A, 125 VAC/VDC, 10 kA Interrupt, 5 s Response, Plug-In Terminal, Through Hole Mount, Short Radial Lead Body Type, Polycarbonate, 1/4 in Dia Body Size

Application

For printed circuit boards, electronic equipment and appliances

Standards

UL File No. E10480 Recognized | CSA File No. 29862 | Military Specification QPL File No. FM02 | PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

High breaking capacity
Clear cover option to view fuse element status
4 hr at 100%, 5 s at 200% response time

Specifications

Amperage Rating:	0.005 A
Body Size:	1/4 in Dia
Body Type:	Short Radial Lead
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Polycarbonate
Mounting Type:	Through Hole
Response Time:	5 s
Series:	0274
Terminal Type:	Plug-In
Voltage Rating:	125 VAC/VDC
