Actual Product May Vary From Image

278 LEV

Name: 278 LEV
Brand: Leviton Manufacturing
SKU: 278 LEV
Availability: OutOfStock

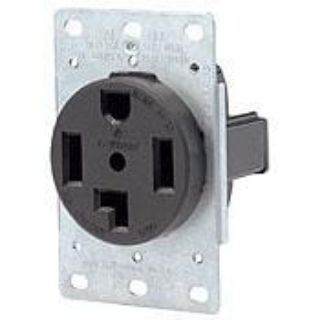

Leviton® 278 Flush Mount Grounding Straight Blade Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 278

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Flush Mount Grounding

Description

Built of durable thermoplastic, Leviton power receptacles come equipped with heavy gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.

Leviton® Straight Blade Receptacle, Flush Mount Grounding, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, NEMA 14-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon/Thermoplastic, Black, 3.75 in H x 2.5 in W x 2.1 in D Dimensions

Application

Commercial Applications

Standards

Features

Grounding receptacle
Withstands 2000 VAC per UL498 dielectric voltage
Rated V-2 per UL94 flammability
Max 30C after 250 cycles OL at 200% rated current
Brass double wipe line contacts
Galvanized steel strap material
Up to 4 AWG wire size

Specifications

Amperage Rating:	30 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.75 in H x 2.5 in W x 2.1 in D
Grade:	Industrial
Horsepower:	2 hp
Material:	Nylon/Thermoplastic
NEMA Rating:	NEMA 14-30R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Side Wire
Voltage Rating:	125/250 VAC
