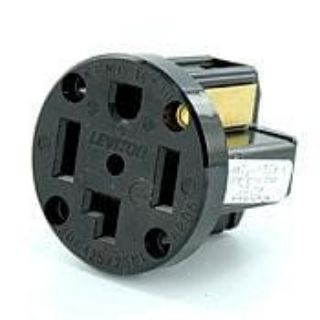

Picture of 278-PM LEV
Actual Product May Vary From Image

278-PM LEV

Leviton® 278-PM Grounding Panel Mount Straight Blade Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Manufacturer: Leviton Manufacturing
Manufacturer part number: 278-PM
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Grounding Panel Mount

Description

Built of durable thermoplastic, Leviton power receptacles come equipped with heavy gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Leviton® Straight Blade Receptacle, Grounding Panel Mount, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, NEMA 14-30R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 2.1 in Dia x 2.22 in H Dimensions

Application

Commercial Applications

Standards

CSA C22.2 File No. 42 | CSA File No. File 152105 | NEMA WD-6 | ANSI C-73 | NOM 057 Certified | UL 498 | UL File No. E13399

Features

  • Panel mounting
  • Grounding
  • 2000 V (min) dielectric strength
  • UL 94V-2 flammability rated
  • Industrial grade
  • Galvanized steel strap material
  • 14 to 6 AWG wire

Specifications

Amperage Rating:30 A
Color:Black
Country of Origin:MX
Dimensions:2.1 in Dia x 2.22 in H
Grade:Commercial
Horsepower:2 hp
Material:Thermoplastic
NEMA Rating:NEMA 14-30R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125/250 VAC
