Actual Product May Vary From Image

27W74 WOO

Name: 27W74 WOO
Brand: Molex/Woodhead
SKU: 27W74 WOO
Price: 96.17 USD
Availability: OutOfStock

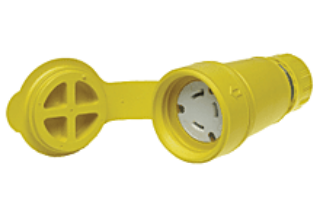

Woodhead® Watertite® 27W74 130147 Female Locking Blade Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 27W74

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$96.17

Qty:

Product Details

Brand Name

Woodhead®

Type

Female

Description

Woodhead® Watertite® wet location wiring devices are rated for high pressure hose down application upto 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include - unique multiple ring seals that lock snugly protecting against moisture and contaminants, sturdy compression Type cord grips that provide high pull-out strength and a protective closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time tested devices that professionals demand.

Woodhead® Watertite® Locking Blade Connector, Female, Series: 130147, 250 VAC, 20 A, 3 Pole, 4 Wires, NEMA 1/3/4/4X/5/6/6P/12/L14-20C Rating, IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 3/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow, 2-1/2 in Dia x 4-3/4 in L Dimensions

Application

Breweries, Dairies, Food, Beverage, Wastewater, Water Treatment and Wet Locations Applications

Standards

UL File No. E10176 | CSA File No. LR6837 | NSF/ANSI/3-A 14159-1

Features

Multiple seal connector interface keeps out contaminants, resists vapor and water from high pressure washdown upto 1000 psi
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
3-piece strain relief seals cord without damaging the cord
Without flip coverplate

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	3/16 to 13/16 in
Country of Origin:	MX
Dimensions:	2-1/2 in Dia x 4-3/4 in L
Enclosure:	IP55/IP56/IP57/IP65/IP66/IP67
Material:	NEoTEX® Paracril OZO Rubber
NEMA Rating:	NEMA 1/3/4/4X/5/6/6P/12/L14-20C
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
