27W76HBK HWD

Name: 27W76HBK HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 27W76HBK HWD
Availability: OutOfStock

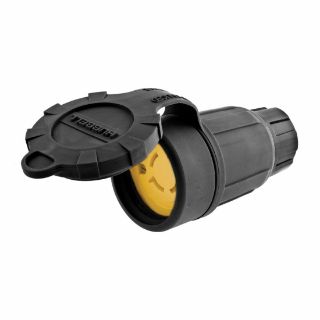

Wiring Device-Kellems Twist-Lock® Safety-Shroud® 27W76HBK 3-Phase Elastomeric Grounding Standard Watertight Locking Connector With Cap, 480 VAC, 20 A, 3 Poles, 4 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 27W76HBK

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Elastomeric Grounding Standard Watertight

Alternate Supplier #

Grainger - 5RVZ3

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Connector, 3-Phase Elastomeric Grounding Standard Watertight, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, NEMA L16-20R, Commercial/Industrial Grade, IP65/IP66/IP67 Enclosure, 0.56 to 0.775 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic Elastomer, Black

Application

Heavy Duty Industrial Applications

Standards

CSA Certified | UL 498 | NEMA WD1/ WD5

Features

Cord mounted
Insulated body
14 to 12 AWG conductor size
Standard size product

Specifications

Amperage Rating:	20 A
Color:	Black
Cord Diameter:	0.56 to 0.775 in
Country of Origin:	US
Enclosure:	IP65/IP66/IP67
Grade:	Commercial/Industrial
Horsepower:	5 hp
Material:	Composite/Thermoplastic Elastomer
NEMA Rating:	NEMA L16-20R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	480 VAC
