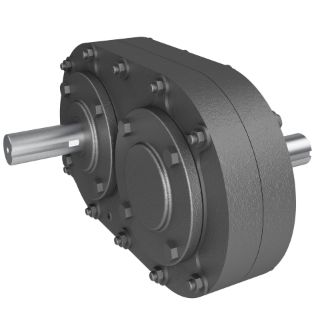

Actual Product May Vary From Image

280 1/1 A H HUB

Name: 280 1/1 A H HUB
SKU: 280 1/1 A H HUB
Availability: OutOfStock

Hub City® 0220-02201 280 Type H Single Reduction Style A Parallel Shaft Gear Drive, Shaft Input, Shaft Output, 91 hp, 1:1 Gear, 1750 rpm Maximum Output, 3179 in-lb Torque Rating

Manufacturer part number: 0220-02201

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Type H Single Reduction Style A

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.

Hub City® Parallel Shaft Gear Drive, Type H Single Reduction Style A, Series: 280, 1:1 Gear Ratio, 91 hp, Shaft Input, Shaft Output, 1-1/4 in Dia Input, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Oil Lubrication, Shaft Mounting, Cast Iron, 7-13/16 in L x 10-1/4 in W x 13-9/16 in H Dimensions

Features

Rugged cast iron housing
High strength gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals

Specifications

Country of Origin:	US
Dimensions:	7-13/16 in L x 10-1/4 in W x 13-9/16 in H
Efficiency:	97.5 %
Gear Ratio:	1:1
Horsepower:	91 hp
Input Size:	1-1/4 in Dia
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Shaft
Output Type:	Shaft
Series:	280
