Actual Product May Vary From Image

282-U 115V FLU

Name: 282-U 115V FLU
Brand: Fluke
SKU: 282-U 115V FLU
Availability: OutOfStock

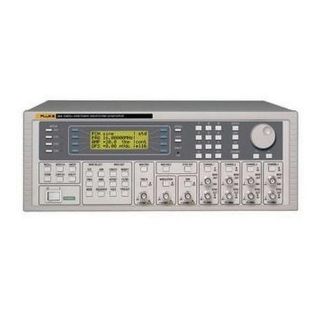

Fluke® 282-U115V 280 Universal Waveform Generator, 40 MHz, Linear/Logarithmic/Triggered/Continuous Sweep, 1 to 16 MHz Sweep, 30 ms to 999 s, 20 Character x 4 Row Alphanumeric LCD Display

Manufacturer: Fluke

Manufacturer part number: 282-U115V

Availability: Ships in 6-8 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Fluke®

Type

Universal

Description

A selection of universal waveform generators offering superior performance and excellent value these universal waveform generators combine many generators in one instrument. Their extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator and amplitude modulation source.

Fluke® Waveform Generator, Universal, Series: 280, 40 MHz Frequency, 50 Ohm Impedance, Linear/Logarithmic/Triggered/Continuous Sweep, 1 to 16 MHz Sweep, 30 ms to 999 s Sweep, 20 Character x 4 Row Alphanumeric LCD Display, 230/115/100 VAC, 50/60 Hz Power Source, 335 mm Length, 350 mm Width, 130 mm Depth

Standards

EN61010-1 | EN61326

Features

Choice of 1, 2 and 4 independent or linked channels
40 MS/s maximum sampling speed
16 MHz function generator
10 MHz pulse generator
Pulse train pattern generator
Arbitrary waveforms of up to 65 k points
Powerful modulation capabilities
Built-in trigger generators
Waveform Manager plus for windows software
Multiple standard waveforms recalled from internal memory
RS-232 and GPIB interfaces

Specifications

Depth:	130 mm
Display Type:	20 Character x 4 Row Alphanumeric LCD
Frequency Rating:	40 MHz
Impedance:	50 Ohm
Length:	335 mm
Power Source:	230/115/100 VAC, 50/60 Hz
Series:	280
Sweep Range:	1 to 16 MHz
Sweep Rate:	30 ms to 999 s
Sweep Type:	Linear/Logarithmic/Triggered/Continuous
Width:	350 mm
