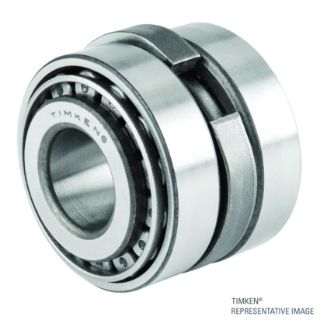

Actual Product May Vary From Image

28584-902A1 TKN

Name: 28584-902A1 TKN
Brand: Timken
SKU: 28584-902A1 TKN
Price: 388.73 USD
Availability: OutOfStock

Tapered Roller Bearing 2TS Assembly

Manufacturer: Timken

Manufacturer part number: 28584-902A1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$388.73

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Tapered Roller Bearing 2TS Assembly | Imperial | 52.4 mm 2.1 in Bore | 92.1 mm 3.6 in OD | 54.8 mm 2.2 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	902A1
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	38700
Inner Race Width (in):	2.1556
Inner Race Width (mm):	54.752
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	3.625
Outer Diameter (mm):	92.075
Outer Diameter Type:	Straight OD
Outer Race Width (in):	1.7806
Outer Race Width (mm):	45.22724
Overall Width (in):	2.1556
Overall Width (mm):	54.75224
Precision class:	Class 2 (Standard)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Double
Shaft Size (in):	2.0625
Shaft Size (mm):	52.3875
Snap Ring:	Yes
Static Load Rating:	58400
