Actual Product May Vary From Image

287-T LEV

Name: 287-T LEV
Brand: Leviton Manufacturing
SKU: 287-T LEV
Availability: OutOfStock

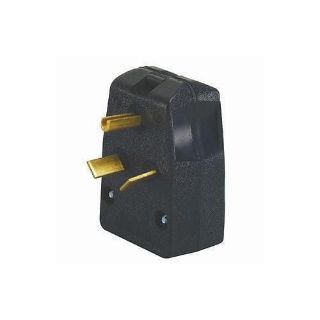

Leviton® 287-T Angled Cable Mount Non-Grounding Straight Blade Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 287-T

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Angled Cable Mount Non-Grounding

Alternate Supplier #

Grainger - 25MY94

Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Leviton® Straight Blade Plug, Angled Cable Mount Non-Grounding, 125/250 VAC, 30/50 A, 3 Pole, 3 Wires, NEMA 10-30P/10-50P, Commercial Grade, 3/4 to 1-1/8 in Cord Dia, -40 to 60 deg C, Thermoplastic, Black, 3.49 in H x 2.56 in W x 1.44 in D

Application

Commercial Applications

Standards

Features

Tough thermoplastic shell for long life
Shell and bottom are hinged in front for ease of assembly
Solid brass blades with color coded terminals simplify wiring
Each dual combination plug supplied with 30 A blades and flat 50 A blade
Interchangeable blades eliminate need for stocking different devices
Built-in rejection feature prevents closure if blades are incorrectly positioned
Wiring stripping gauge molded into plug cover
Zinc plated steel assembly screws and solid brass blade and contacts
14 to 6 AWG terminal accommodation

Specifications

Amperage Rating:	30 A, 50 A
Color:	Black
Cord Diameter:	3/4 to 1-1/8 in
Country of Origin:	MX
Dimensions:	3.49 in H x 2.56 in W x 1.44 in D
Grade:	Commercial
Material:	Thermoplastic
NEMA Rating:	NEMA 10-30P/10-50P
Number of Poles:	3
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Voltage Rating:	125/250 VAC
