2914RT RAC

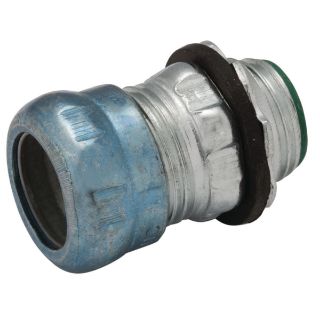

RACO® 2914RT Insulated Raintight Compression Connector, 1 in Trade, For Use With EMT Conduit, Steel, Electro-Plated Zinc
Manufacturer: Raco Industries
Manufacturer part number: 2914RT
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$7.78

Product Details

Brand Name

RACO®

Type

Insulated Raintight

Description

RACO® Compression Connector, Insulated Raintight, 1 in, For Use With: EMT Conduit, Steel, Electro-Plated Zinc, 1.853 in L x 1.56 in W x 1.645 in H

Application

Used in wet locations to bond and secure EMT conduit to a box or enclosure and electrical applications

Standards

cULus 514B | cULus File No. E195970 | CSA C22.2 No. 18 | NEC 358.42 | 314.15

Features

  • All steel construction insures mechanical protection for the raceway
  • Fittings are available in 1/2 in to 4 in trade sizes
  • All fittings are marked "Wet Locations" to allow inspecting authorities to immediately determine that the installation is up to code
  • All connectors are supplied with a factory installed knockout seal no need to add the expense of buying a gasket separately
  • No need to disassemble the cutting prior to installation RACO® rain tight steel EMT Compression fittings are designed so that when they come out of the carton they can be installed directly on the conduit no need to waste time loosing compression nuts
  • Easy installation, no need for special tools to install properly install these fittings like any other steel EMT Compression cutting no need for a torque wrench to insure proper installation
  • 0.56 in thread length

Specifications

Color:Silver
Country of Origin:CN
Diameter:1.64 in
Dimensions:1.853 in L x 1.56 in W x 1.645 in H
Finish:Electro-Plated Zinc
Material:Steel
Suitable For Use With:EMT Conduit
Trade Size:1 in
