291751CD 3 TKN

Name: 291751CD 3 TKN
Brand: Timken
SKU: 291751CD 3 TKN
Availability: OutOfStock

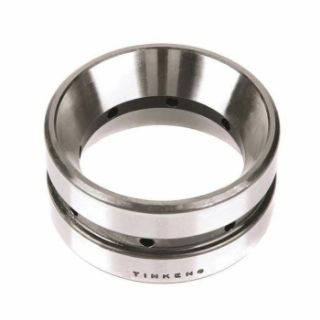

Timken® 291751CD-3 290000 Double Tapered Bearing Cup, 17-1/2 in OD, 3-7/8 in W Cup, 5.7499 in W Bearing, 0.06 in Max House Fillet Radius, 16.34 in Frontface Dia Max House Shoulder

Manufacturer: Timken

Manufacturer part number: 291751CD-3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Double Tapered

Description

Timken® Bearing Cup, Double Tapered, Series: 290000, 17-1/2 in OD, 3-7/8 in Cup Width, 5.7499 in Bearing Width, 0.06 in Maximum House Fillet Radius, 16.34 in Frontface Diameter Maximum House Shoulder, For Use With: Type TDO Tapered Roller Bearings, Steel

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA Certified

Features

When spacers are used, bearing is furnished as a preset, matched assembly
Cup features groove and lubrication holes in the outside diameter

Specifications

Bearing Width:	5.7499 in
Cup Width:	3-7/8 in
Material:	Steel
Maximum House Fillet Radius:	0.06 in
Maximum House Shoulder Diameter:	16.34 in Frontface
Outside Diameter:	17-1/2 in
Series:	290000
Suitable For Use With:	Type TDO Tapered Roller Bearings
