2924 RAC

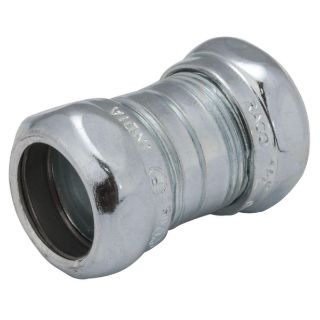

RACO® 2924 Compression Conduit Coupling, 1 in, For Use With EMT Conduit, Steel, Electro-Plated Zinc
Manufacturer: Raco Industries
Manufacturer part number: 2924
Availability: Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.82

Product Details

Brand Name

RACO®

Type

Compression

Alternate Supplier #

Grainger - 52AU99

Description

When you need to couple, connect, fasten, or ground conduit or cables, RACO® fittings are your best answer. Where applicable, RACO® products are engineered in accordance with the standards established by Underwriters' Laboratories (UL). Most products are listed by UL and also certified by the Canadian Standards Association (CSA). Dimensional data listed in this catalog is intended for general reference with broad tolerance limits.
RACO® Conduit Coupling, Compression, 1 in, For Use With: EMT Conduit, Threaded Mount, Steel, Silver, Electro-Plated Zinc, 1.64 in OD x 2.32 in L

Application

Used in dry locations to couple two ends of EMT conduit and electrical applications

Standards

cULus 514B | UL File No. E195970 | C22.2 No. 18

Features

  • All steel construction insures mechanical protection for the raceway
  • All components are zinc electro plated for corrosion protection
  • UPC bar coded fittings are individually polybagged with a pre-printed UPC-A bar code, and packaged in pre-scored tear top cartons for an attractive presentation
  • RACO® Compression couplings are suitable for applications above 600V
  • RACO® steel compression couplings provide concrete-tight connections
  • Screw-on installation

Specifications

Color:Silver
Country of Origin:CN
Dimensions:1.64 in OD x 2.32 in L
Finish:Electro-Plated Zinc
Material:Steel
Mounting Type:Threaded
Size:1 in
Suitable For Use With:EMT Conduit
