2926V521 GAT

Multi-Speed™
Manufacturer: Gates
Manufacturer part number: 2926V521
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$198.41

Product Details

Brand Name

Gates

Alternate Supplier #

98000064

Description

Power transmission systems do more than operate at constant speeds with constant outputs. Customers increasingly need variable speed systems to regulate the speed and rotational force, or output torque, of critical mechanical equipment. Our Multi-Speed belts are engineered for efficiency, energy savings and increased productivity at a wide range of speeds and speed ratios.

Features

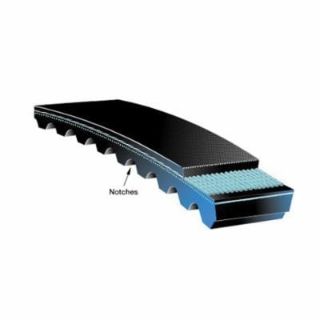

Molded notches reduce belt bending stress around small diameter pulleys, reducing the heat generated by rapid flexing and preventing premature belt failure. Uniform composition and thickness of the undercord ensure smooth and silent running with minimal vibration at high speeds. Gates Multi-Speed belts self-adjust to the pulley groove, providing a wide range of speeds and speed ratios. In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request. Meets ARPM/RMA IP-3-2 oil and heat resistant standards.

Specifications

Angle:26
Belt Back Side:Smooth
Belt Inside:Notched
Belt/Slab:Belt
Color:Black
Construcao:Banded
Cord Material:Polyester
Country of Origin:MX
Effective Length (in):53
Effective Length (mm):1346
GC Base Product:Multi-Speed Belt
Harmonized Tariff Code:4010.32.3000
Material:Polychloroprene (Neoprene)
Max Temp (°C):+82
Max Temp (F):+180
Min Temp (°C):-34
Min Temp (F):-30
OC (in):53
OC (mm):1346
Proposition 65:NO
Secao:RVS-I
Sided:Single Sided
Static Conductive:No
Thickness (in):0.504
Thickness (mm):13
Top Width (in):1.828
Top Width (mm):46
Unitset (V80):No
