Actual Product May Vary From Image

29328-E1-XL FAG

Name: 29328-E1-XL FAG
Brand: INA
SKU: 29328-E1-XL FAG
Price: 3,318.59 USD
Availability: OutOfStock

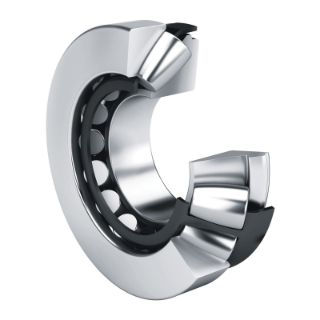

FAG 29328-E1-XL Axial Spherical Roller Bearing, 140 mm Dia Bore, 240 mm OD, 1 Row, 60 mm W, 2900000 N Load

Manufacturer: INA

Manufacturer part number: 29328-E1-XL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$3,318.59

Qty:

Product Details

Brand Name

FAG

Description

Axial spherical roller bearings are single-row roller bearings with an angular adjustment facility. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly and the shaft locating washer together. The bearings can be dismantled. As a result, the bearing components can be fitted separately.

FAG Axial Spherical Roller Bearing, Series: 293-E1, 140 mm Bore, 240 mm OD, 1 Rows, 60 mm Width, Single Thrust Direction, 2900000 N Load, 2900 rpm Maximum, -30 to 200 deg C

Features

Bearing arrangements are subjected to high and very high axial loads
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be compensated by the bearing under axial loads
Radial loads occur in addition to axial forces
A relatively high speed suitability is required in addition to a high load carrying capacity
High shock type loads must be supported
Bearing parts are to be mounted separately
1010000 N dynamic/2900000 N static
X-life design
Sheet steel cage

Specifications

Bore Diameter:	140 mm
Country of Origin:	DE
Load Capacity:	2900000 N
Maximum Speed:	2900 rpm
Number of Rows:	1
Outside Diameter:	240 mm
Series:	293-E1
Temperature Rating:	-30 to 200 deg C
Thrust Direction:	Single
Width:	60 mm
