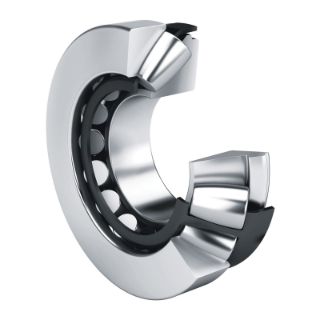

Picture of 29348-E1-XL FAG
Actual Product May Vary From Image

29348-E1-XL FAG

FAG 29348-E1-XL Axial Spherical Roller Bearing, 240 mm Dia Bore, 380 mm OD, 1 Row, 85 mm W, 6500000 N Load
Manufacturer: INA
Manufacturer part number: 29348-E1-XL
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$10,973.92

Product Details

Brand Name

FAG

Description

Axial spherical roller bearings are single-row roller bearings with an angular adjustment facility. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly and the shaft locating washer together. The bearings can be dismantled. As a result, the bearing components can be fitted separately.
FAG Axial Spherical Roller Bearing, Series: 293-E1, 240 mm Bore, 380 mm OD, 1 Rows, 85 mm Width, Single Thrust Direction, 6500000 N Load, 1710 rpm Maximum, -30 to 200 deg C

Features

  • Bearing arrangements are subjected to high and very high axial loads
  • Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be compensated by the bearing under axial loads
  • Radial loads occur in addition to axial forces
  • A relatively high speed suitability is required in addition to a high load carrying capacity
  • High shock type loads must be supported
  • Bearing parts are to be mounted separately
  • 2040000 N dynamic/6500000 N static
  • X-life design
  • Sheet steel cage

Specifications

Bore Diameter:240 mm
Country of Origin:DE
Load Capacity:6500000 N
Maximum Speed:1710 rpm
Number of Rows:1
Outside Diameter:380 mm
Series:293-E1
Temperature Rating:-30 to 200 deg C
Thrust Direction:Single
Width:85 mm
