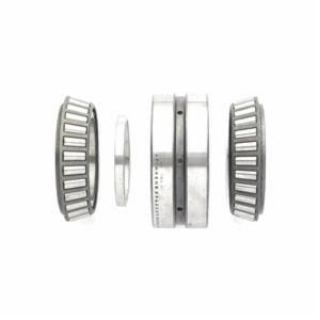

Actual Product May Vary From Image

29675 903B2 TKN

Name: 29675 903B2 TKN
Brand: Timken
SKU: 29675 903B2 TKN
Availability: OutOfStock

Timken® 29675-903B2 29600 Type TDO Tapered Roller Bearing Assembly, 2-3/4 in Dia Bore, 4-1/2 in OD, 2 Rows, 2.31 in W, 24800 lb Dynamic/37200 lb Static Load

Manufacturer: Timken

Manufacturer part number: 29675-903B2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TDO

Description

Timken® Tapered Roller Bearing Assembly, Type TDO, Series: 29600, 2-3/4 in Bore Dia, 4-1/2 in Outside Dia, 2 Rows, 2.31 in Width, 24800 lb Dynamic/37200 lb Static, -65 to 250 deg F

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Features

Double cup and two single cones
When spacers are used, bearing is furnished as a preset, matched assembly
Cup features groove and lubrication holes in the outside diameter

Specifications

Bore Diameter:	2-3/4 in
Load Capacity:	24800 lb Dynamic/37200 lb Static
Number of Rows:	2
Outside Diameter:	4-1/2 in
Series:	29600
Temperature Rating:	-65 to 250 deg F
Width:	2.31 in
