Actual Product May Vary From Image

298MXL012 GAT

Name: 298MXL012 GAT
Brand: Gates
SKU: 298MXL012 GAT
Availability: OutOfStock

298MXL012

Manufacturer: Gates

Manufacturer part number: 92570181

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Gates®

Type

Mini Extra Light

Alternate Supplier #

298MXL012

Description

The trapezoidal tooth profile makes this belt well suited for use in positioning applications.

Application

Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Standards

RMA Standard

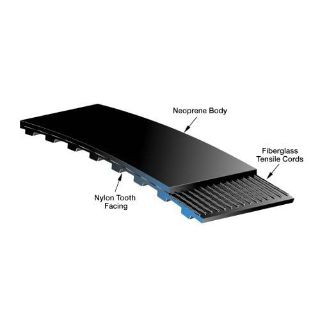

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture
The trapezoidal tooth profile makes this belt well suited for use in positioning applications

Specifications

Material:	Neoprene
Minimum Pulley Diameter:	0.49 in
Number of Teeth:	372
Overall Length:	29.76 in
Pitch:	0.08 in
Reinforced Material:	Fiberglass
Series:	9257
Temperature Range:	-30 to 180 deg F
Width:	1/8 in
