Actual Product May Vary From Image

29W74H HWD

Name: 29W74H HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 29W74H HWD
Availability: OutOfStock

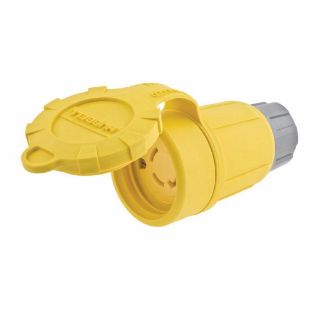

Wiring Device-Kellems Twist-Lock® Safety-Shroud® 29W74H Elastomeric Grounding Standard Watertight Locking Connector With Cap, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 29W74H

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Elastomeric Grounding Standard Watertight

Alternate Supplier #

Grainger - 5RWA4

Description

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Connector, Elastomeric Grounding Standard Watertight, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30R, Industrial Grade, IP65/IP66/IP67 Enclosure, 0.64 to 0.93 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic Elastomer, Yellow

Application

Heavy Duty Industrial Applications

Standards

CSA Certified | UL 498 | NEMA WD1/ WD5

Features

Cord mounted
Insulated body
12 to 8 AWG conductor size
Standard size product

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.64 to 0.93 in
Country of Origin:	US
Enclosure:	IP65/IP66/IP67
Grade:	Industrial
Material:	Composite/Thermoplastic Elastomer
NEMA Rating:	NEMA L14-30R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125/250 VAC
