29W75 WOO

Name: 29W75 WOO
Brand: Molex/Woodhead
SKU: 29W75 WOO
Price: 153.18 USD
Availability: OutOfStock

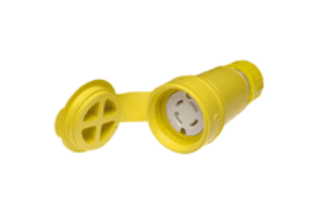

Woodhead® Watertite® 29W75 130147 3-Phase Connector With Locking Blade, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 29W75

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$153.18

Qty:

Product Details

Brand Name

Woodhead®

Type

3-Phase

Description

Woodhead® Watertite® wet location wiring device are rated for high pressure hose down application up to 1000 psi, the benchmark for the industry. The only device made of NEoTEX® paracril OZO rubber, yield ultimate performance within a wide temperature range, around many oil, chemical and abrasive condition. Additional feature include - unique multiple ring seal that lock snugly protecting against moisture and contaminant, sturdy compression type cord grip that provide high pull out strength and a protective closure cap that seal the connector when it is not in use. Woodhead® Watertite® product are time tested device that professional demand.

Woodhead® Watertite® Connector, 3-Phase, Series: 130147, 250 VAC, 30 A, 3 Pole, 4 Wires, L15-30 NEMA Rating, IP67 Enclosure, 11/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

For breweries, dairies, food and beverage, wastewater treatment and water treatment

Standards

CSA File No. LR6837 | UL File No. E10176

Features

Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seal cord without damaging the cord
Single receptacle
F4 1 in cord grip body size
Female connector
Nickel plated brass plug blade and connector contact, NEoTEX® paracril OZO rubber outer housing and grommet, stainless steel face screw nylon face insert brass wire saddle clamp, Lexan® receptacle cover plate and closure cap
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	11/16 to 13/16 in
Country of Origin:	MX
Enclosure:	IP67
Material:	Rubber
NEMA Rating:	L15-30
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	250 VAC
