Actual Product May Vary From Image

29W78H HWD

Name: 29W78H HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 29W78H HWD
Availability: OutOfStock

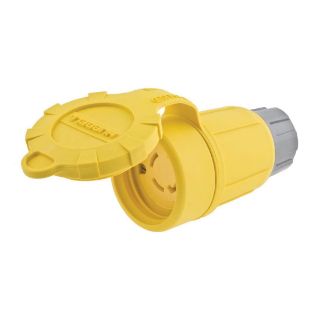

Wiring Device-Kellems Twist-Lock® 29W78H 3-Phase Female Grounding Heavy Duty Insulated Standard Watertight Locking Connector With Cap, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 29W78H

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Heavy Duty Insulated Standard Watertight

Alternate Supplier #

Grainger - 5RWF7

Description

Wiring Device-Kellems Twist-Lock® Locking Connector, 3-Phase Female Grounding Heavy Duty Insulated Standard Watertight, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, NEMA L18-30R, Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, 0.64 to 0.93 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Elastomer, Yellow, 2.8 in Dia x 4.9 in L

Standards

UL 498 | CSA C22.2 No. 42 | NEMA WD1/WD5/WD6 | ANSI Specified | UL94 HB Flammability Rating

Features

UV resistant thermoplastic elastomer body with easy grip ribs
Impact resistant PBT non-metallic components
Stainless steel assembly screw
12 to 8 AWG conductor
Cord mounted

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.64 to 0.93 in
Country of Origin:	US
Dimensions:	2.8 in Dia x 4.9 in L
Enclosure:	NEMA 4/4X/6/6P/12
Grade:	Industrial
Material:	Composite
NEMA Rating:	NEMA L18-30R
Number of Poles:	4
Number of Wires:	5
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	120/208Y VAC
