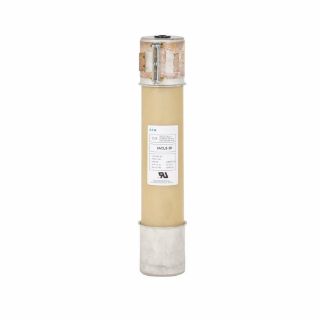

Actual Product May Vary From Image

2ACLS-12R BSF

Name: 2ACLS-12R BSF
Brand: Bussmann
SKU: 2ACLS-12R BSF
Availability: OutOfStock

Bussmann 2ACLS-12R ACLS Motor Start Semiconductor Fuse, 230 A, 2.4 kV, 50 kA Interrupt, Class: R

Manufacturer: Bussmann

Manufacturer part number: 2ACLS-12R

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Motor Start

Description

Our R-Rated, current-limiting medium voltage fuses are backup fuses suitable for indoor and outdoor use in applications where it is necessary to limit short-circuit currents on high capacity systems. They are typically used to protect medium voltage drives and starters. Construction types include ferrule and bolt-on, with special application ferrule and hermetically sealed fuses available for use with motor starters and motor controls, including AMPGARD motor starters. Both fuse mountings and fuseclips are available. All of our R-Rated medium voltage fuses include open fuse indication to speed troubleshooting.

Bussmann Semiconductor Fuse, Motor Start, Series: ACLS, 230 A, 2.4 kV, 50 kA Interrupt, Class: R

Standards

IEEE Std. C37.41

Features

Special Features: Single barrel, 12R designation
Notes: Consult factory for mountings.
Width: 3 in
Weight: 0.001 lbs
Barrel Type: Single
Length: 10.8 in
Max. Voltage: 2.75 kV
Height: 3 in

Specifications

Amperage Rating:	230 A
Class:	R
Country of Origin:	DO
Interrupt Rating:	50 kA
Series:	ACLS
Voltage Rating:	2.4 kV
