Actual Product May Vary From Image

2AK74X1 BRN

Name: 2AK74X1 BRN
Brand: Regal Rexnord
SKU: 2AK74X1 BRN
Price: 215.87 USD
Availability: OutOfStock

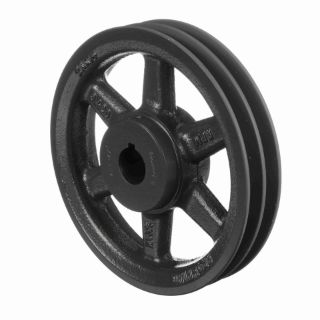

Browning® 1032630 AK Series Type 3 FHP Sheave, 1 in Finished Bore, 7-1/4 in OD, 2 Grooves, 7.2 in (A)/6.66 in (3L) Dia Pitch, 1-3/8 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1032630

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$215.87

Qty:

Product Details

Brand Name

Browning®

Type

Type 3

Description

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® FHP Sheave, Type 3, Series: AK Series, Finished Bore, 1 in Bore Dia, 7-1/4 in Outside Dia, 7.2 in (A)/6.66 in (3L), 2 Grooves, 1-3/8 in Face Width, 11/32 in Hub Projection, 1-23/32 in Overall Length, For Use With: A and 3L Cross Section Belts, Cast Iron

Application

Aggregate and Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals and Mining, Pulp and Paper and Unit Handling Industries

Features

Largest selection of finished bore sheaves of any other manufacturer
Browning® offers finished bore sheaves in both A and B combination (A/B) configuration
Combination groove all Browning® BK sheaves permit the running of A, 4L, B and 5L belts to be run in them
Bushed products provide more flexibility of inventory, by just changing out the bore size of the bushing
Sheaves are balanced and accurately machined to minimize vibration
Largest selection of products of any sheave manufacturer assurance to have the best product for specific application and most economical drive design
Paint finish that protects product from rushing in high moisture environments

Specifications

Bore Diameter:	1 in
Bore Type:	Finished
Country of Origin:	MX
Face Width:	1-3/8 in
Hub Projection:	11/32 in
Material:	Cast Iron
Number of Grooves:	2
Outside Diameter:	7-1/4 in
Overall Length:	1-23/32 in
Pitch Diameter:	7.2 in (A)/6.66 in (3L)
Series:	AK Series
Suitable For Use With:	A and 3L Cross Section Belts
