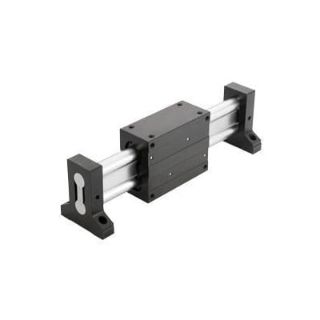

Actual Product May Vary From Image

2CA120KEL48 THO

Name: 2CA120KEL48 THO
Brand: Thomson Industries
SKU: 2CA120KEL48 THO
Availability: OutOfStock

Thomson® RoundRail™ 2CA120KEL48 End Supported Standard Linear Guide, 3/4 in Dia Nominal, 48 in L Linear Guide, 42 in L Stroke

Manufacturer: Thomson Industries

Manufacturer part number: 2CA120KEL48

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

End Supported Standard

Description

The 2CA twin shaft web RoundRail™ linear guide features the new patented Super Smart Ball Bushing® bearings with up to 216X the life or 6X the load capacity of conventional bearings. The 2CA twin shaft web is ideal for spanning or bridging a gap and its double LinearRace® shafting and welded integral web design maximizes torque and dramatically improves deflection characteristics. Pre-aligned for quick and easy installation, the 2CA twin shaft web is designed to move medium loads with virtually frictionless travel.

Thomson® RoundRail™ Linear Guide, End Supported Standard, Series: 2CA, 3/4 in Diameter Nominal, 48 in Linear Guide Length, 42 in Stroke Length, SB End Support, 1800 lb Dynamic Load, 0.28 in Mounting Hole, 3 in W x 3-5/8 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

High roll moment torque resistance, high rigidity, smooth and easy to install
Twin shaft web design for high roll moment capacity, high rigidity and ultra smooth travel
Pre-aligned shafts, end supported for gantry style or bridge applications
End supported for quicker and easy installation
The Super Smart Ball Bushing® bearing the most technologically advanced and most robust linear bearing in the world
The inherent self-aligning-in-all-directions design of the Super Smart Ball Bushing® bearing allows for ultra smooth travel when mounted to wider tolerance prepared surfaces
Cost savings
Corrosion resistant versions for maximum performance in harsh environments
Used when spanning or bridging a gap
Double LinearRace® shaft and welded integral web design maximizes torque and dramatically improves deflection characteristics
Pre-aligned for quick and easy installation
Designed to move medium loads with virtually frictionless travel

Includes

60 CaseÂ® LinearRaceÂ® Twin Welded Shafts With Integral Web, Universal Integrated Carriage With Super Smart Ball BushingÂ® 4 Open Type Bearings and (2) Vertical Double End Supports

Specifications

Country of Origin:	MX
Dimensions:	3 in W x 3-5/8 in H
End Support Type:	SB
Linear Guide Length:	48 in
Load Capacity:	1800 lb Dynamic
Mounting Hole Size:	0.28 in
Nominal Diameter:	3/4 in
Series:	2CA
Stroke Length:	42 in
