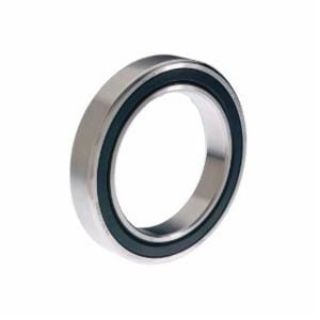

Actual Product May Vary From Image

2MMV9313HXVVSULFS637 TKN

Name: 2MMV9313HXVVSULFS637 TKN
Brand: Timken
SKU: 2MMV9313HXVVSULFS637 TKN
Availability: OutOfStock

Timken® 2MMV9313HXVVSULFS637 2MMV9300HX Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 65 mm Dia Bore, 90 mm OD, 1 Row, 13 mm W, 15 deg, 15700 N Dynamic/11160 N Static Load

Manufacturer: Timken

Manufacturer part number: 2MMV9313HXVVSULFS637

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Light Duty

Description

2MMV-HX VV possess all of the high-speed advantages of the HX but with true high-speed seals. These bearing seals protect lubricant from outside contaminants while ensuring internal lubricant retention, extending service life significantly.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 2MMV9300HX, 65 mm Bore, 90 mm OD, 1 Rows, 13 mm Width, 15 deg Contact Angle, Double Seal Closure, 15700 N Dynamic/11160 N Static Load, Phenolic Cage, 17800 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring
Kluber Isoflex NBU 15 grease lubricant

Specifications

Bore Diameter:	65 mm
Cage Material:	Phenolic
Closure Type:	Double Seal
Contact Angle:	15 deg
Load Capacity:	15700 N Dynamic/11160 N Static
Maximum Speed:	17800 rpm
Number of Rows:	1
Outside Diameter:	90 mm
Series:	2MMV9300HX
Width:	13 mm
