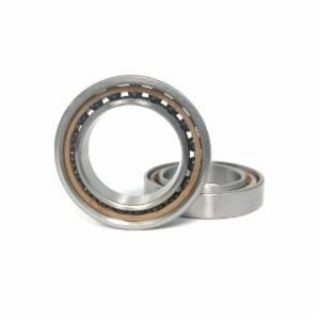

Actual Product May Vary From Image

2MMV99104WN DUL TKN

Name: 2MMV99104WN DUL TKN
Brand: Timken
SKU: 2MMV99104WN DUL TKN
Availability: OutOfStock

Timken® 2MMV99104WN DUL 2MMV99100WN Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 20 mm Dia Bore, 42 mm OD, 2 Rows, 12 mm W, 15 deg, 9760 N Dynamic/4690 N Static Load

Manufacturer: Timken

Manufacturer part number: 2MMV99104WN DUL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Light Duty

Description

2MMV 99100WN are available with 15 deg initial contact angle and have been developed to operate under the demanding requirements of high-speed machine tools. They incorporate design features that permit operation at higher speeds than standard angular contact ball bearings. The bore, outside diameter and width are the same as the MM9100 Series.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 2MMV99100WN, 20 mm Bore Dia, 42 mm Outside Dia, 2 Rows, 12 mm W, 15 deg Contact, Open Closure, 9760 N Dynamic/4690 N Static, Steel Bearing, Phenolic Cage, 43800 rpm Maximum, Uncoated

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring

Specifications

Bearing Material:	Steel
Bore Diameter:	20 mm
Cage Material:	Phenolic
Closure Type:	Open
Contact Angle:	15 deg
Finish:	Uncoated
Load Capacity:	9760 N Dynamic/4690 N Static
Maximum Speed:	43800 rpm
Number of Rows:	2
Outside Diameter:	42 mm
Series:	2MMV99100WN
Width:	12 mm
