2MMVC99108WN DUX FS637 TKN

Name: 2MMVC99108WN DUX FS637 TKN
Brand: Timken
SKU: 2MMVC99108WN DUX FS637 TKN
Availability: OutOfStock

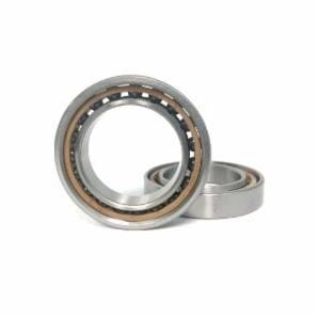

Timken® 2MMVC99108WNDUXFS637 2MMV99100WN Extra-Light Super Precision Angular Contact Ball Bearing With Ceramic Ball, 40 mm Dia Bore, 68 mm OD, 2 Rows, 15 mm W, 15 deg, 11900 N Dynamic/8140 N Static Load

Manufacturer: Timken

Manufacturer part number: 2MMVC99108WNDUXFS637

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Extra-Light

Description

2MMV 99100WN are available with 15 deg initial contact angle and have been developed to operate under the demanding requirements of high-speed machine tools. They incorporate design features that permit operation at higher speeds than standard angular contact ball bearings. The bore, outside diameter and width are the same as the MM9100 Series.

Timken® Super Precision Angular Contact Ball Bearing, Extra-Light, Series: 2MMV99100WN, 40 mm Bore Dia, 68 mm Outside Dia, 2 Rows, 15 mm Width, 15 deg Contact, 11900 N Dynamic/8140 N Static, 26400 rpm Maximum

Application

High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle

Standards

ABMA ABEC 7/9 Certified

Features

Single and double-row ball screw
Very high-speed
High accuracy and stiffness
Low operating temperature
Low noise and vibration
Angular contact low shoulder on both inner and outer-ring
Kluber Isoflex NBU 15 grease lubricant

Specifications

Bore Diameter:	40 mm
Contact Angle:	15 deg
Load Capacity:	11900 N Dynamic/8140 N Static
Maximum Speed:	26400 rpm
Number of Rows:	2
Outside Diameter:	68 mm
Series:	2MMV99100WN
Width:	15 mm
