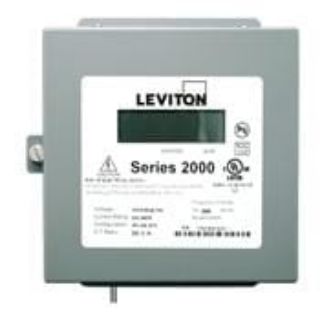

Actual Product May Vary From Image

2N208-11 LEV

Name: 2N208-11 LEV
Brand: Leviton Manufacturing
SKU: 2N208-11 LEV
Availability: OutOfStock

Leviton® VerifEye™ 2N208-11 2000 3-Phase 3-Element Meter, 120/208 VAC, 100 A, LCD Display, Pulse Output Communication

Manufacturer: Leviton Manufacturing

Manufacturer part number: 2N208-11

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Phase 3-Element

Description

The Leviton® VerifEye™ series 2000 line of revenue-grade meters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 2000 m are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Meter, 3-Phase 3-Element, Series: 2000, 120/208 VAC, 100 A, LCD Display, Pulse Output Communication, Steel, 6.19 in L x 7.5 in W x 3.25 in D Dimensions

Application

Institutional, Industrial, Government, Commercial and Indoor Applications

Standards

ANSI C12.1 | ASHRAE 90.1 | cUL Listed | Title 24 Compliant | UL Listed

Features

Measures kWh
Equipped with an isolated pulse output channel
Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformer that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
Enclosure is surface mount industrial grade JIC steel
Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed

Specifications

Amperage Rating:	100 A
Communication:	Pulse Output
Country of Origin:	US
Dimensions:	6.19 in L x 7.5 in W x 3.25 in D
Display Type:	LCD
Material:	Steel
Series:	2000
Voltage Rating:	120/208 VAC
