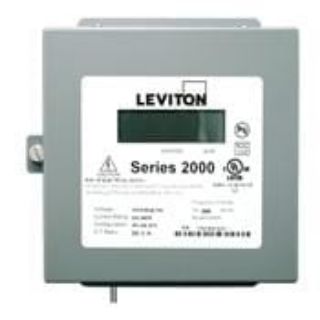

Actual Product May Vary From Image

2N208-41 LEV

Name: 2N208-41 LEV
Brand: Leviton Manufacturing
SKU: 2N208-41 LEV
Availability: OutOfStock

Leviton® VerifEye™ 2N208-41 2000 3-Phase 4-Wire 3-Element Surface Mount Meter, 120/208 VAC, 400 A, LCD Display, Isolated Pulse Output Communication

Manufacturer: Leviton Manufacturing

Manufacturer part number: 2N208-41

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Phase 4-Wire 3-Element Surface Mount

Description

Leviton® VerifEye™ series 2000 line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 2000 meters are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Meter, 3-Phase 4-Wire 3-Element Surface Mount, Series: 2000, 120/208 VAC, 400 A, LCD Display, Isolated Pulse Output Communication, -22 to 140 deg F Operating, Steel, 6.19 in W x 3.25 in D x 7.5 in H Dimensions

Application

Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates and Indoor Applications

Standards

ANSI C12.1 | ASHRAE 90.1 | cUL Listed | Title 24 Compliant | UL 916

Features

Measures kWh
Utilizes either revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed
Line to line
Gray color

Specifications

Amperage Rating:	400 A
Communication:	Isolated Pulse Output
Country of Origin:	US
Dimensions:	6.19 in W x 3.25 in D x 7.5 in H
Display Type:	LCD
Material:	Steel
Operating Temperature:	-22 to 140 deg F
Series:	2000
Voltage Rating:	120/208 VAC
