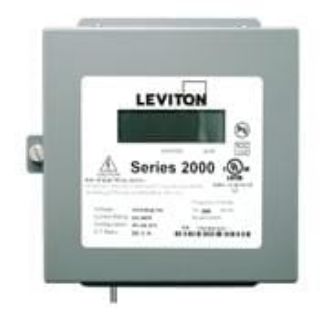

Actual Product May Vary From Image

2N480-11 LEV

Name: 2N480-11 LEV
Brand: Leviton Manufacturing
SKU: 2N480-11 LEV
Availability: OutOfStock

Leviton® VerifEye™ 2N480-11 2000 3-Phase 4-Wire 3-Element Meter, 277/480 VAC, 100 A, LCD Display, Isolated Pulse Output Communication

Manufacturer: Leviton Manufacturing

Manufacturer part number: 2N480-11

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

3-Phase 4-Wire 3-Element

Description

Leviton® VerifEye™ series 2000 line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 2000 meters are easy to specify and install for new construction and retrofits.

Leviton® VerifEye™ Meter, 3-Phase 4-Wire 3-Element, Series: 2000, 277/480 VAC, 100 A, LCD Display, Isolated Pulse Output Communication, -22 to 140 deg F Operating, Steel, 6.19 in W x 3.25 in D x 7.5 in H Dimensions

Application

Commercial, Institutional, Industrial, Indoor, Load Profiling and Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement and Verification, Energy Conservation and Cost Reduction, Green Building Initiatives and Government Mandates Applications

Standards

ANSI C12.1 | ASHRAE 90.1 | cUL Listed | Title 24 Compliant | UL 916

Features

Equipped with an isolated pulse output channel
Utilizes revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers (CTs) that conform to all applicable ANSI requirements or 1% accuracy split-core CTs
Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
Load indicator LED verifies meter functionality
Reverse phase indicator LED illuminates if the meter is improperly installed

Specifications

Amperage Rating:	100 A
Communication:	Isolated Pulse Output
Country of Origin:	US
Dimensions:	6.19 in W x 3.25 in D x 7.5 in H
Display Type:	LCD
Material:	Steel
Operating Temperature:	-22 to 140 deg F
Series:	2000
Voltage Rating:	277/480 VAC
