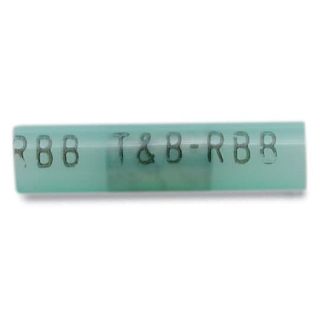

Picture of 2RA18 TB
Actual Product May Vary From Image

2RA18 TB

INS NYL BUTT SPLICE, 22-18 LEN 1.19
Manufacturer: Thomas & Betts
Manufacturer part number: 2RA18
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 200
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.02

Product Details

Brand Name

Sta-Kon

Type

Splice Connector

Description

Insulated Nylon Butt Splice Connector For Wire Range 22-18 Length 1.19 Diameter .18, Red

Features

Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size.

Specifications

Color:Red
Conductor Range:22-18
Country of Origin:US
Finish:Electro -Tin Plated
Flammability Rating:UL 94 V-2
Insulation:Insulated Nylon
Material:Copper
Maximum Insulation:.115 IN
Stock Thickness:.03
Temperature Rating:105?C
Voltage Rating:600V

Resources

Spec Sheet
