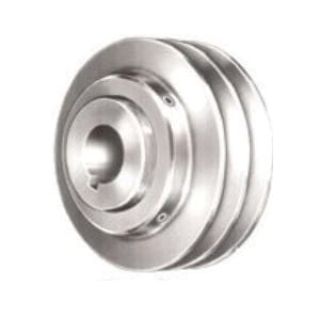

Actual Product May Vary From Image

2VP36 1.1/8 GAT

Name: 2VP36 1.1/8 GAT
Brand: Gates
SKU: 2VP36 1.1/8 GAT
Price: 152.41 USD
Availability: OutOfStock

Light Duty Sheaves-Variable Pitch

Manufacturer: Gates

Manufacturer part number: 2VP36 1.1/8

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$152.41

Qty:

Product Details

Brand Name

Gates

Type

Solid

Alternate Supplier #

78104368

Description

Our variable pitch sheaves are engineered for mechanical drive speed variations that are efficient, easy to install, and easy to adjust for your light-duty applications.

Features

NOTE: Pitch diameter is a reference diameter only. The minimum recommended pitch diameters should be observed for the specific belt section used. Use with PoweRated® belts on light industrial HVAC, outdoor power equipment and appliance applications. Also try our Hi-Power® II A and B industrial belts. Sheave grooves are precision machined to ensure an exact fit. Available in single- or double-groove designs. Details shown which do not affect drive function or overall weight may be changed without notification.

Specifications

Bore (in):	1.125
Bore (mm):	28.6
Country of Origin:	US
GC Base Product:	Light Duty Sheaves - Variable Pitch - Two Groove "3L" - "4L" - "5L" - Pitch
Harmonized Tariff Code:	8483.50.9040
Non-Standard:	NO
Number of Grooves:	2
OD (in):	3.35
OD (mm):	85.1
P Dia Max_3L_in:	2.82
P Dia Max_3L_mm:	71.6
P Dia Max_4L_in:	3.35
P Dia Max_4L_mm:	85.1
P Dia Max_5L_in:	3.41
P Dia Max_5L_mm:	86.6
P Dia Min_3L_in:	2.50
P Dia Min_3L_mm:	63.5
P Dia Min_4L_in:	2.88
P Dia Min_4L_mm:	73.2
P Dia Min_5L_in:	3.13
P Dia Min_5L_mm:	79.5
P Dia_3L (in):	2.5
P Dia_3L (mm):	63.5
Proposition 65:	NO
