3-111T SMT

Name: 3-111T SMT
Brand: Regal Rexnord
SKU: 3-111T SMT
Price: 204.45 USD
Availability: OutOfStock

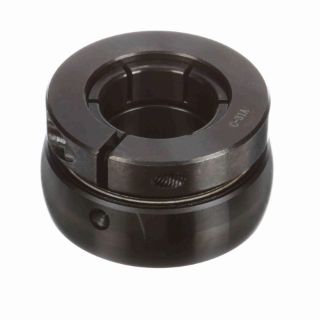

Sealmaster® 705332 Medium Duty Non-Expansion Straight Bore Mounted Ball Bearing Insert only, 1-3/4 in Dia Bore, 3.543 in OD, 2.094 in W, 5216 lb Static/7889 lb Dynamic Load

Manufacturer: Regal Rexnord

Manufacturer part number: 705332

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$204.45

Qty:

Product Details

Brand Name

Sealmaster®

Type

Medium Duty Non-Expansion Straight Bore

Description

Sealmaster® Mounted Ball Bearing Insert only, Medium Duty Non-Expansion Straight Bore, 1-3/4 in Bore Dia, 3.543 in Outside Dia, 2.094 in Width, Felt Labyrinth Seal Closure, 5216 lb Static/7889 lb Dynamic, 52100 Steel Bearing, Brass Cage, 5000 rpm Maximum, 220 deg F, Black Oxide

Features

Sealmaster® wide outer ring bearing insert for use in Sealmaster® machined housings only
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	1-3/4 in
Cage Material:	Brass
Closure Type:	Felt Labyrinth Seal
Country of Origin:	MX
Finish:	Black Oxide
Load Capacity:	5216 lb Static/7889 lb Dynamic
Maximum Speed:	5000 rpm
Outside Diameter:	3.543 in
Temperature Rating:	220 deg F
Width:	2.094 in
