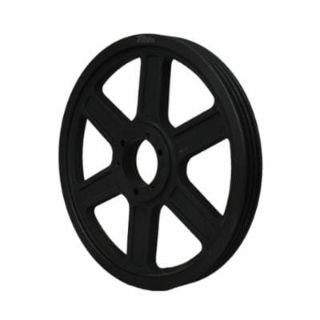

Martin Hi-Cap® 3 3V 1400 SK Arm/Spoke Wedge Stock Sheave, 1/2 to 2-5/8 in QD® Bushed Bore, 14 in OD, 3 Grooves, 13.95 in Dia Pitch, 1-1/2 in W Face
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 3 3V 1400 SK
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$339.84

Product Details

Brand Name

Martin

Type

Arm/Spoke

Description

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 50 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.
Martin Hi-Cap® Wedge Stock Sheave, Arm/Spoke, QD® Bushed Bore, 1/2 to 2-5/8 in Bore, 14 in OD, 13.95 in Pitch Diameter, 3 Grooves, 1-1/2 in Face Width, SK Bushing, For Use With: 3V-Cross Section V-Belts, Cast Iron

Specifications

Bore Diameter:1/2 to 2-5/8 in
Bore Type:QD® Bushed
Bushing Type:SK
Country of Origin:US
Face Width:1-1/2 in
Material:Cast Iron
Number of Grooves:3
Outside Diameter:14 in
Pitch Diameter:13.95 in
Suitable For Use With:3V-Cross Section V-Belts
