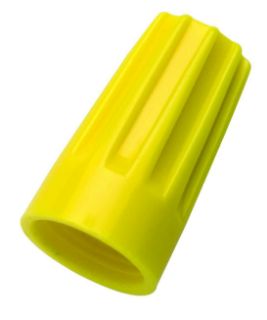

Actual Product May Vary From Image

30-074 IDE

Name: 30-074 IDE
Brand: Ideal Industries
SKU: 30-074 IDE
Price: 0.21 USD
Availability: InStock

IDEAL® WIRE-NUT® 30-074 74B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 18 to 12 AWG Solid/Stranded Copper Wire, Polypropylene

Manufacturer: Ideal Industries

Manufacturer part number: 30-074

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1200	1500	400
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.21

Qty:

Product Details

Brand Name

IDEAL®

Type

Flame-Retardant

Alternate Supplier #

Grainger - 6YH37

Description

With a fixed, square wire spring and a positive grip shell, the WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

IDEAL® WIRE-NUT® Wire Connector, Flame-Retardant, Series: 74B®, Twist-On Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 12 AWG Wire, 600 VAC, Specifications: 7/16 in Solid, 3/8 in Stranded Wire Strip, 2 to 4 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Yellow, Zinc Plated, 35/64 in W x 61/64 in H Dimensions

Application

For insulating or joining two or more conductor

Standards

CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C | UL94 V-2 Flammability Rating

Features

Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
Refined range to handle all common applications
No pre-twisting required, positive grip design provides fast and easy installation
Excellent for fine stranded wire applications
Approved for bonding and grounding applications
High temperature models designed to withstand the extreme heat build-up found in high wattage light fixtures and signs
Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
Reusable for easy circuit changes and additions

Specifications

Color:	Yellow
Country of Origin:	US
Dimensions:	35/64 in W x 61/64 in H
Finish:	Zinc Plated
Material:	Polypropylene
Series:	74B®
Shell Style:	Twist-On
Specifications:	7/16 in Solid, 3/8 in Stranded Wire Strip, 2 to 4 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	18 to 12 AWG
Wire Type:	Solid/Stranded Copper
