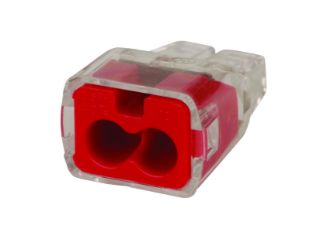

Actual Product May Vary From Image

30-1032 IDE

Name: 30-1032 IDE
Brand: Ideal Industries
SKU: 30-1032 IDE
Price: 0.21 USD
Availability: OutOfStock

IDEAL® In-Sure™ 30-1032 Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate

Manufacturer: Ideal Industries

Manufacturer part number: 30-1032

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.21

Qty:

Product Details

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 5EKL2

Description

The In-Sure™ push-in wire connector from IDEAL®. The fastest, easiest, no-twist push-in connector. Perfect for OEM lighting manufacturing, prefabricated wiring systems and other OEM and branch circuit wiring applications. The clear polycarbonate housing allows visual verification of every connection. Simply glide the wire in the low insertion force makes it easy. In-Sure™ also allows removal of the wire after the connection has been established. UL Listed 94 D-Z, CSA Certified, and rated to 600 VAC and 105 deg C. In-Sure™ saves time and improves productivity while perfecting connections.

IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 2 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Red, Tin Plated, 0.78 in L x 0.52 in W x 0.38 in H Dimensions

Application

Grounding and Bonding Applications

Standards

Features

No twist connection reduces repetitive motion fatigue
Low insertion force for fast and easy connections
Compact size makes installation easy
Clear shell gives visual verification of connection
600 VAC maximum building wire, 1000 VAC maximum signs and lighting fixtures
Tough, flame-retardant shell rated at 105 deg C
Accepts any combination of 12 to 18 AWG solid or tin bonded copper conductors
Electrolytic tin plated copper bus system
Stainless steel inserts restrict pull-out
Color coded for easy identification
Built-in strip length gauge
Ground rating eliminates need for special "ground" connector
20 to 12 AWG solid, 16 to 12 AWG (19 strand or less) 18 AWG (7 strand) stranded, 18 to 14 AWG (19 strand or less) stranded (tin bonded)

Specifications

Color:	Red
Country of Origin:	US
Dimensions:	0.78 in L x 0.52 in W x 0.38 in H
Finish:	Tin Plated
Material:	Nylon/Polycarbonate
Specifications:	2 Ports, 3/8 to 1/2 in Strip Length
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG
Wire Type:	Solid/Stranded/Tin-Bonded
