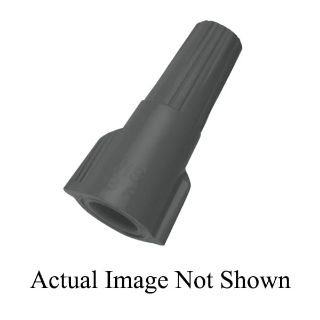

Actual Product May Vary From Image

30-1360 IDE

Name: 30-1360 IDE
Brand: Ideal Industries
SKU: 30-1360 IDE
Availability: OutOfStock

IDEAL® UnderGround™ 30-1360 60 Series Flame-Retardant Twist-On Wire Connector, Live Action/Square Wire Spring, 20 to 10 AWG Aluminum/Copper Wire, Steel Spring/Thermoplastic Polyester Shell

Manufacturer: Ideal Industries

Manufacturer part number: 30-1360

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Flame-Retardant

Description

UnderGround™ Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.

IDEAL® UnderGround™ Twist-On Wire Connector, Flame-Retardant, Series: 60 Series, Live Action/Square Wire Spring, Aluminum/Copper Wire, 20 to 10 AWG Wire, 600 VAC, Specifications: 1/2 in Wire Strip, 105 deg C, Steel Spring/Thermoplastic Polyester Shell, Gray, Zinc Plated, 0.65 in Dia x 1.68 in L Dimensions

Application

Ejection Pumps, Low Voltage Landscape Lighting, Lawn-Sprinkler Control Systems, Sump and Well Pump Installations, Valve Control Boxes and Utility Tracer Line Applications

Standards

CSA C22.2 #188 | RoHS Compliant | UL 94 V-2 Flammability Rated | UL 486C | UL 486D

Features

100% silicone-based sealant protects against moisture and corrosion
Easy-to apply, pre-filled Twist-on wire connectors saves time and improves productivity
Expanding, live action square-wire spring for fast, secure and long lasting connections
Deep skirt provides superior moisture resistance to protect connections
For tough environmental conditions
(1) 20 AWG with (1) 18 AWG - (1) 10 AWG with (2) 12 AWG wire combinations
1000/carton
Wiring connectors
Non-hardening sealant completely seals out moisture to protect against fungus and corrosion
Sealant is stable down to -40 deg C
No pre-twisting required
Flame-retardant shell

Specifications

Color:	Gray
Country of Origin:	US
Dimensions:	0.65 in Dia x 1.68 in L
Finish:	Zinc Plated
Material:	Steel Spring/Thermoplastic Polyester Shell
Series:	60 Series
Specifications:	1/2 in Wire Strip
Spring Type:	Live Action/Square Wire
Temperature Rating:	105 deg C
Voltage Rating:	600 VAC
Wire Size:	20 to 10 AWG
Wire Type:	Aluminum/Copper
