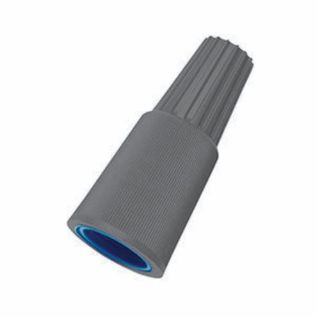

Actual Product May Vary From Image

30-1364 IDE

Name: 30-1364 IDE
Brand: Ideal Industries
SKU: 30-1364 IDE
Availability: OutOfStock

IDEAL® UnderGround™ 30-1364 Flame Retardant Twist-On Wire Connector, Live Action/Square Wire Spring, 18 to 8 AWG Aluminum/Copper Wire, Steel Spring/Thermoplastic Polyester Shell

Manufacturer: Ideal Industries

Manufacturer part number: 30-1364

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Flame Retardant

Description

UnderGround™ Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.

IDEAL® UnderGround™ Twist-On Wire Connector, Flame Retardant, Series: 64 Series, Live Action/Square Wire Spring, Aluminum/Copper Wire, 18 to 8 AWG Wire, 600 VAC, Specifications: 5/8 in Wire Strip, 105 deg C, Steel Spring/Thermoplastic Polyester Shell, Dark Blue/Gray, Zinc Plated, 0.93 in Dia x 2.04 in L Dimensions

Application

Ejection Pumps, Low Voltage Landscape Lighting, Lawn-Sprinkler Control Systems, Sump and Well Pump Installations, Valve Control Boxes and Utility Tracer Line Applications

Standards

C22.2 #188 CSA Certified | RoHS Compliant | UL 94V-2 Flammability Rating | UL 486C/486D Listed

Features

100% silicone-based sealant protects against moisture and corrosion
Easy to apply, pre-filled twist-on wire connectors saves time and improves productivity
Expanding, live-action square-wire spring for fast, secure and long-lasting connections
Deep skirt provides superior moisture resistance to protect connections
For tough environmental conditions
(2) 18 AWG Sol - (3) 10 AWG wire combinations
1000/Carton
Wiring Connectors

Specifications

Color:	Dark Blue/Gray
Country of Origin:	US
Dimensions:	0.93 in Dia x 2.04 in L
Finish:	Zinc Plated
Material:	Steel Spring/Thermoplastic Polyester Shell
Series:	64 Series
Specifications:	5/8 in Wire Strip
Spring Type:	Live Action/Square Wire
Temperature Rating:	105 deg C
Voltage Rating:	600 VAC
Wire Size:	18 to 8 AWG
Wire Type:	Aluminum/Copper
