30-1639 IDE

Name: 30-1639 IDE
Brand: Ideal Industries
SKU: 30-1639 IDE
Availability: OutOfStock

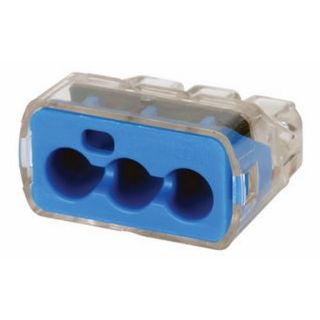

IDEAL® In-Sure™ 30-1639 39 Series Push-In Wire Wire Connector, 10 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate

Manufacturer: Ideal Industries

Manufacturer part number: 30-1639

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Push-In Wire

Description

The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in the low insertion force makes it easy.

IDEAL® In-Sure™ Wire Connector, Push-In Wire, Series: 39 Series, Solid/Stranded/Tin-Bonded Wire, 10 AWG Wire, 600 VAC, Specifications: 3 Port 3/8 to 1/2 in Stripe, 105 deg C, Nylon/Polycarbonate, Blue, Tin Coated, 0.78 in L x 0.86 in W x 0.45 in H Dimensions

Application

For grounding and bonding

Standards

C22.2 No 188 | CSA Certified | RoHS Compliant | UL 94 V-2 Flammability Rated | UL 486C | UL467

Features

10 AWG solid/stranded capability for high current applications
Low insertion force may reduce risk of repetitive trauma injury
Wide wire range for easy installation at OEM and in field
Transparent shell enables easy verification of connection
600 VAC maximum building wire, 1000 V maximum signs and lighting fixtures
Ground rating eliminates need for special "ground" connector
Compact size fits through 1/2 in KO allows more wiring options
Nylon/PC housing, copper contacts, tin plating
14 to 10 AWG solid, 12 to 10 AWG (19 strand or less) stranded, 14 to 10 AWG (19 strand or less) stranded (tin-bonded)

Specifications

Color:	Blue
Country of Origin:	US
Dimensions:	0.78 in L x 0.86 in W x 0.45 in H
Finish:	Tin Coated
Material:	Nylon/Polycarbonate
Series:	39 Series
Specifications:	3 Port 3/8 to 1/2 in Stripe
Temperature Rating:	105 deg C
Voltage Rating:	600 VAC
Wire Size:	10 AWG
Wire Type:	Solid/Stranded/Tin-Bonded
