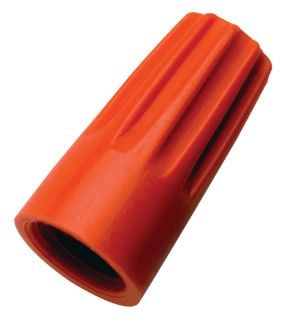

Actual Product May Vary From Image

30-173 IDE

Name: 30-173 IDE
Brand: Ideal Industries
SKU: 30-173 IDE
Price: 0.16 USD
Availability: OutOfStock

IDEAL® WIRE-NUT® 30-173 73B® Flame-Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Polypropylene

Manufacturer: Ideal Industries

Manufacturer part number: 30-173

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.16

Qty:

Product Details

Brand Name

IDEAL®

Type

Flame-Retardant

Alternate Supplier #

Grainger - 25A381

Description

IDEAL® WIRE-NUT® Wire Connector, Flame-Retardant, Series: 73B®, Twist-On Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Orange, Zinc Plated, 7/16 in W x 55/64 in H Dimensions

Application

For insulating or joining two or more conductor

Standards

CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C | UL94 V-2 Flammability Rating

Features

Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
No pre-twisting required, positive grip design provides fast and easy installation
Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
Reusable for easy circuit changes and additions
For tough environmental conditions

Specifications

Color:	Orange
Country of Origin:	US
Dimensions:	7/16 in W x 55/64 in H
Finish:	Zinc Plated
Material:	Polypropylene
Series:	73B®
Shell Style:	Twist-On
Specifications:	3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	22 to 14 AWG
Wire Type:	Solid/Stranded Copper
