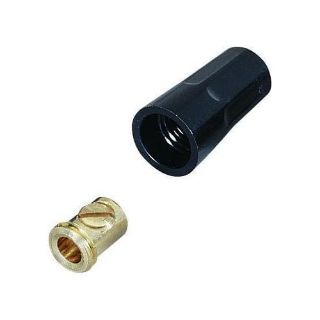

Picture of 30-211 IDE
Actual Product May Vary From Image

30-211 IDE

IDEAL® 30-211 Set Screw Connector, 22 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene
Manufacturer: Ideal Industries
Manufacturer part number: 30-211
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1.98

Product Details

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 6VG14

Description

Set screw wire connectors from IDEAL® ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 to 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.
IDEAL® Set Screw Connector, Series: 11 Series, Copper Wire, 22 to 10 AWG Wire, Slotted Screw, 600 VAC, Specifications: 1 to 6 Conductors, 29/64 in H x 13/32 in W Connector, 302 deg F, Brass/Polypropylene, Black, 33/64 in W x 63/64 in H Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C

Features

  • Eliminates need for restriping wire each time the connection is disturbed
  • Solid brass sleeves
  • Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
  • Permits fast visual inspection of splice
  • Tough, flame-retardant shell rated at 302 deg F
  • Minimum (1) 14 AWG with (1) 20 AWG maximum (3) 14 AWG with (2) 18 AWG wire combination range

Includes

(1) K-2422 Set Screw Holder

Specifications

Color:Black
Country of Origin:US
Dimensions:33/64 in W x 63/64 in H
Material:Brass/Polypropylene
Screw Type:Slotted
Series:11 Series
Specifications:1 to 6 Conductors, 29/64 in H x 13/32 in W Connector
Temperature Rating:302 deg F
Voltage Rating:600 VAC
Wire Size:22 to 10 AWG
Wire Type:Copper
